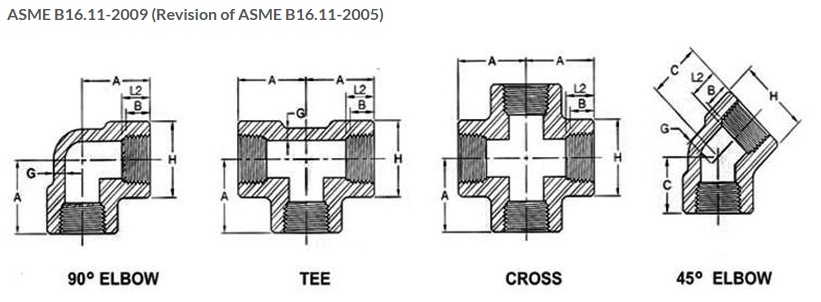

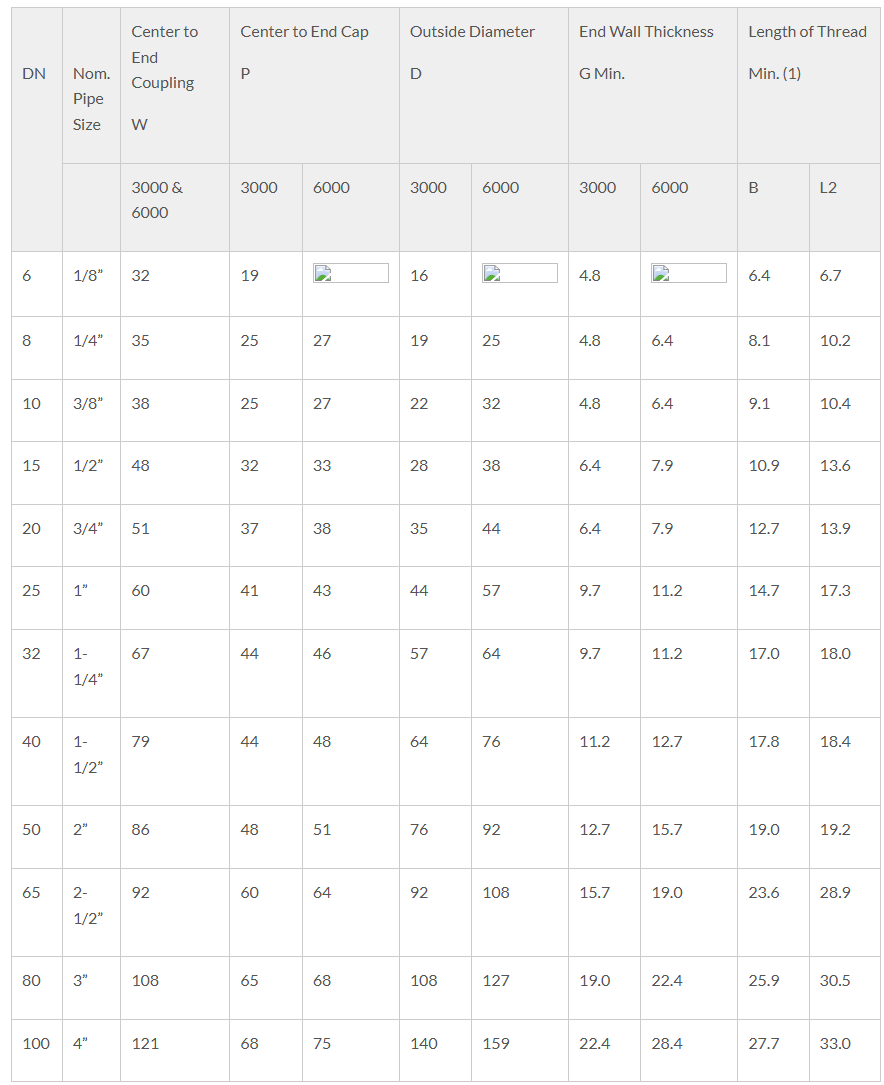

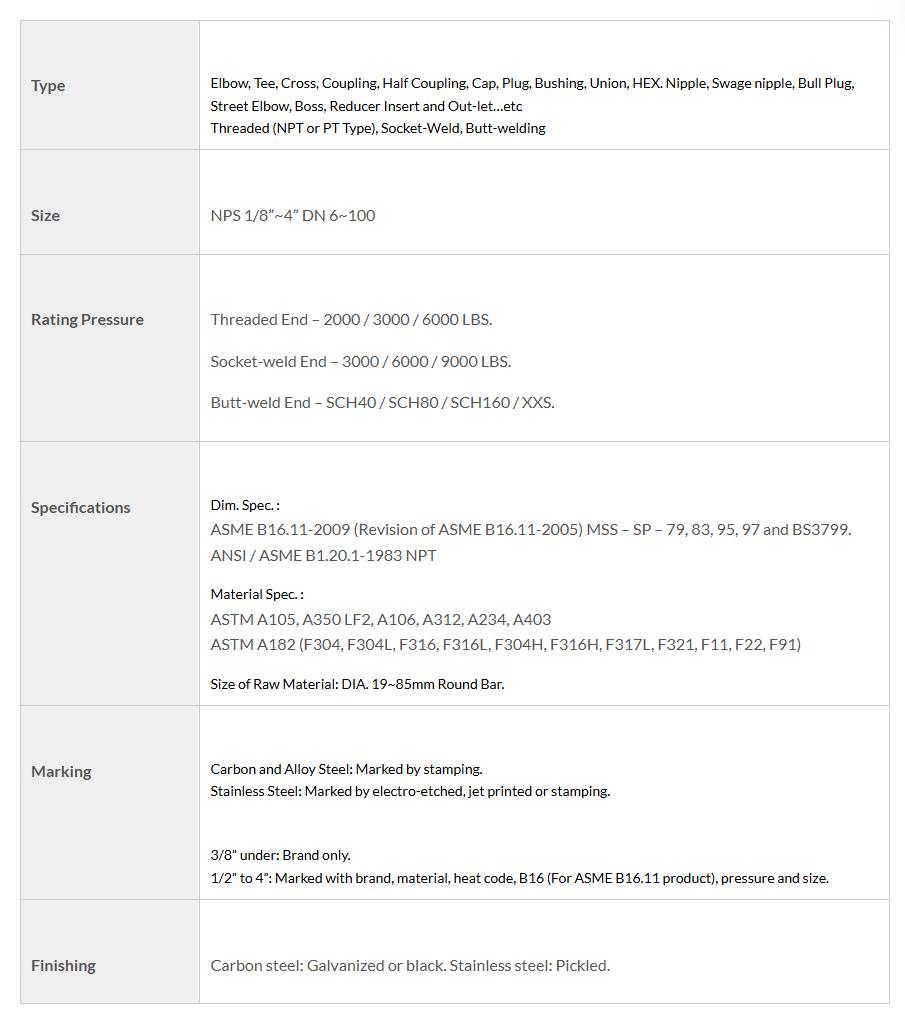

ForgedFittings

Dimensions in Millimeters.

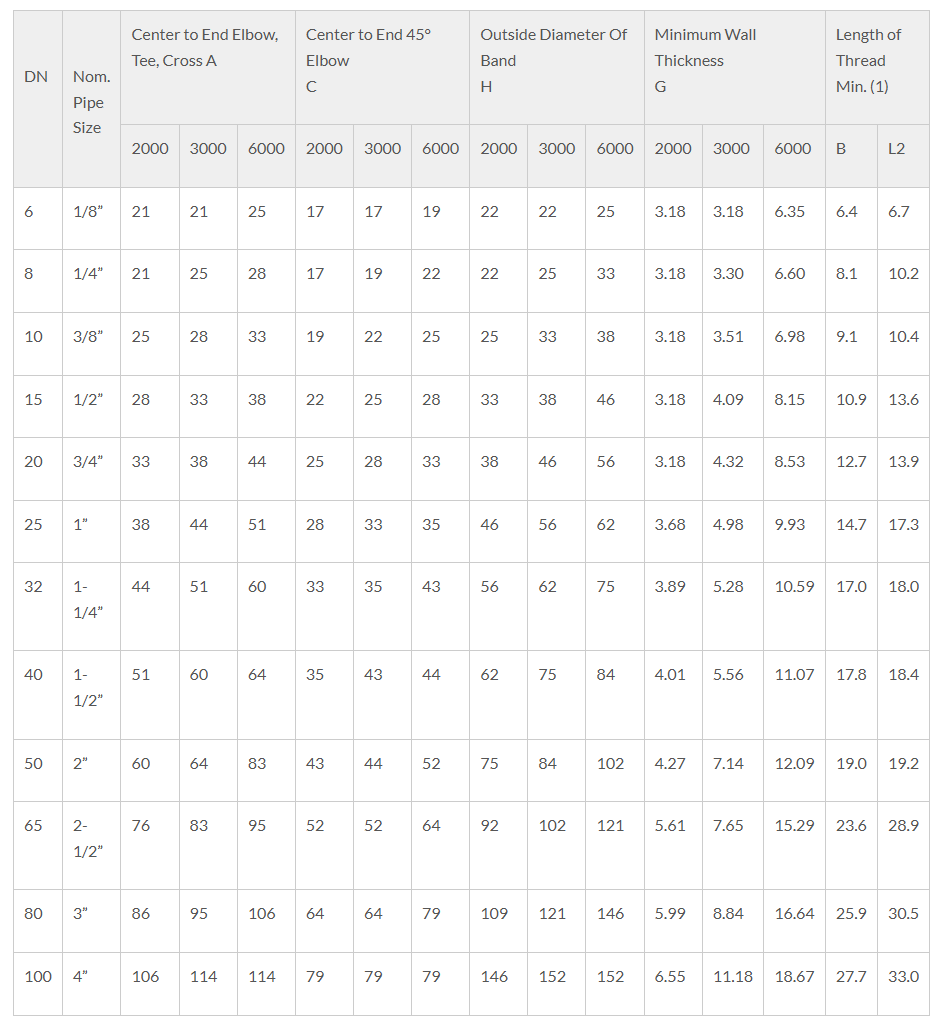

Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ANSI/ASME B1.20.1)

Dimensions in Millimeters.

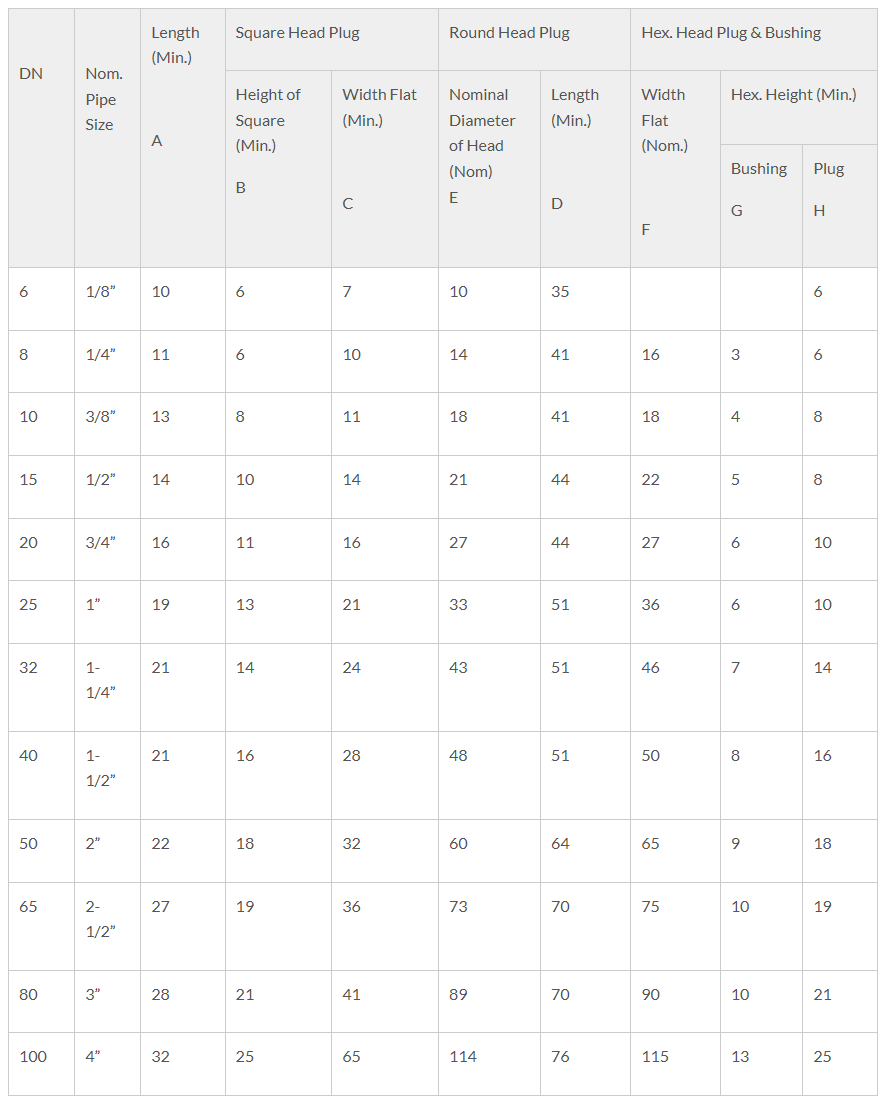

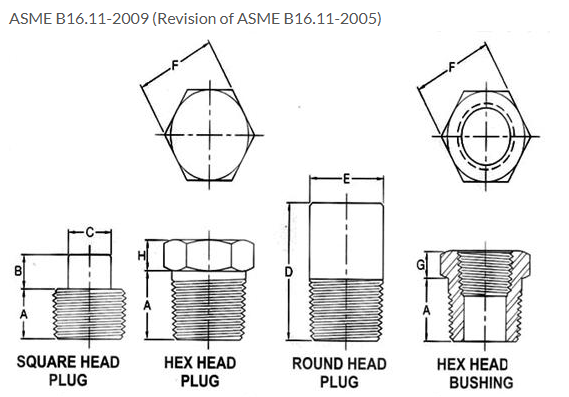

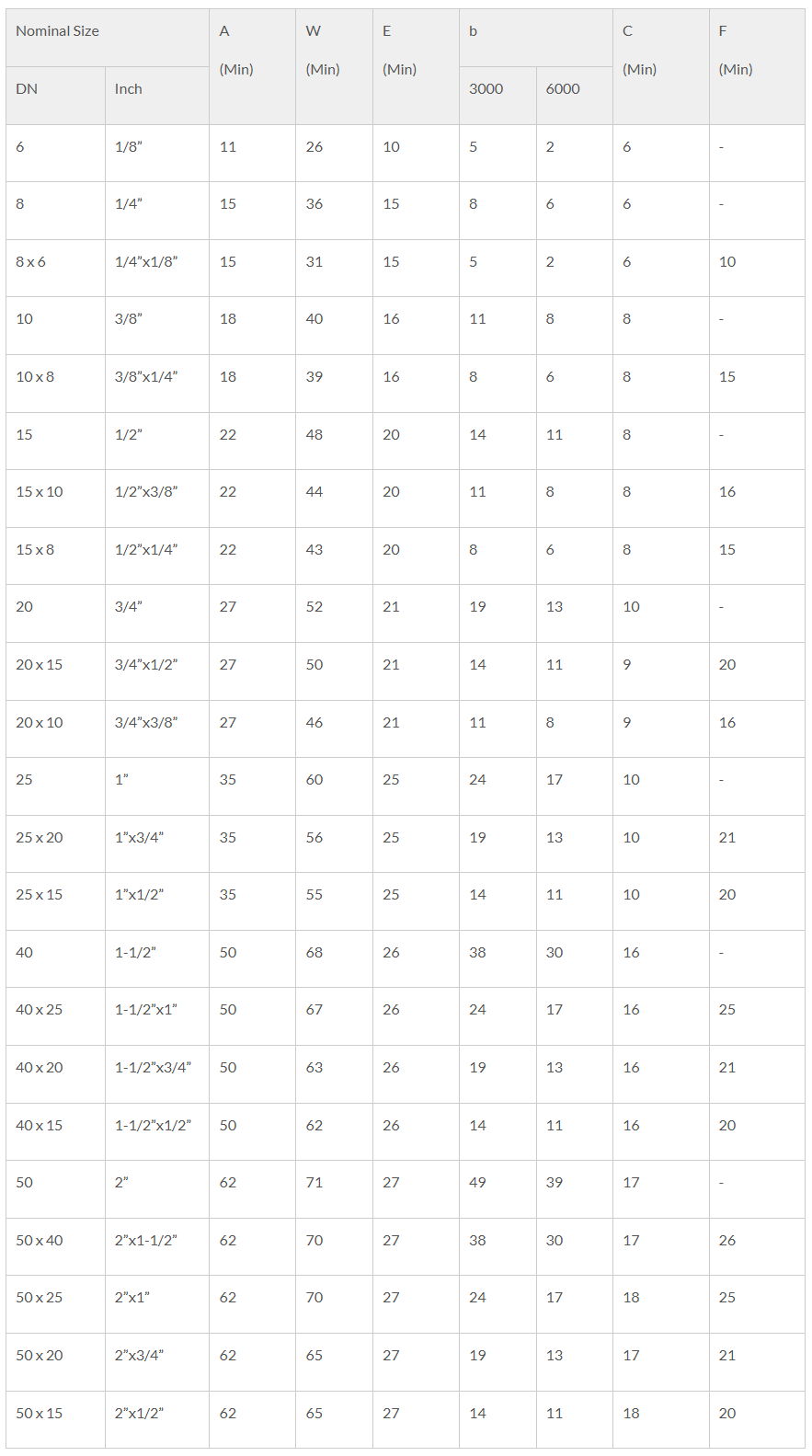

CAUTIONARY NOTE REGARDING HEX BUSHINGS.
Hex head bushing of one-size reduction should not be used in services where they might be subject to harmful loads and forces other than internal pressure.

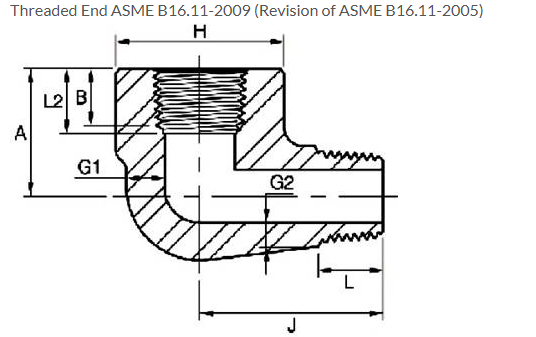

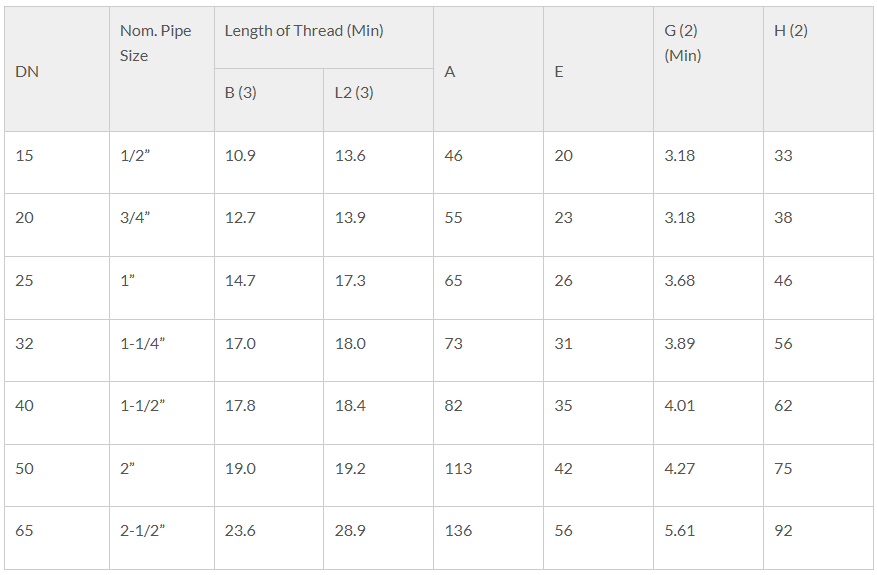

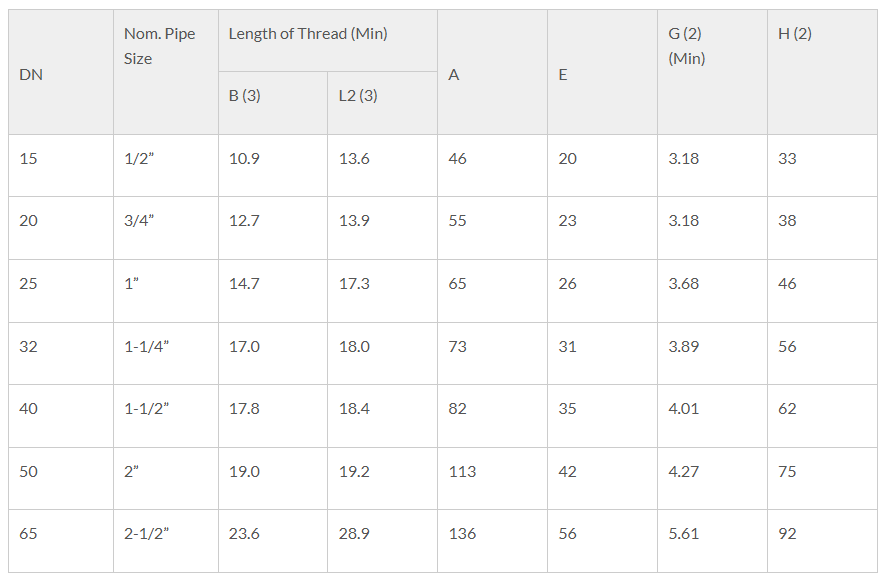

Street Elbows Threaded

Dimensions in Millimeters.
Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI/ASME B1.20.1)

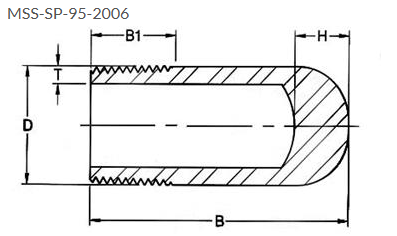

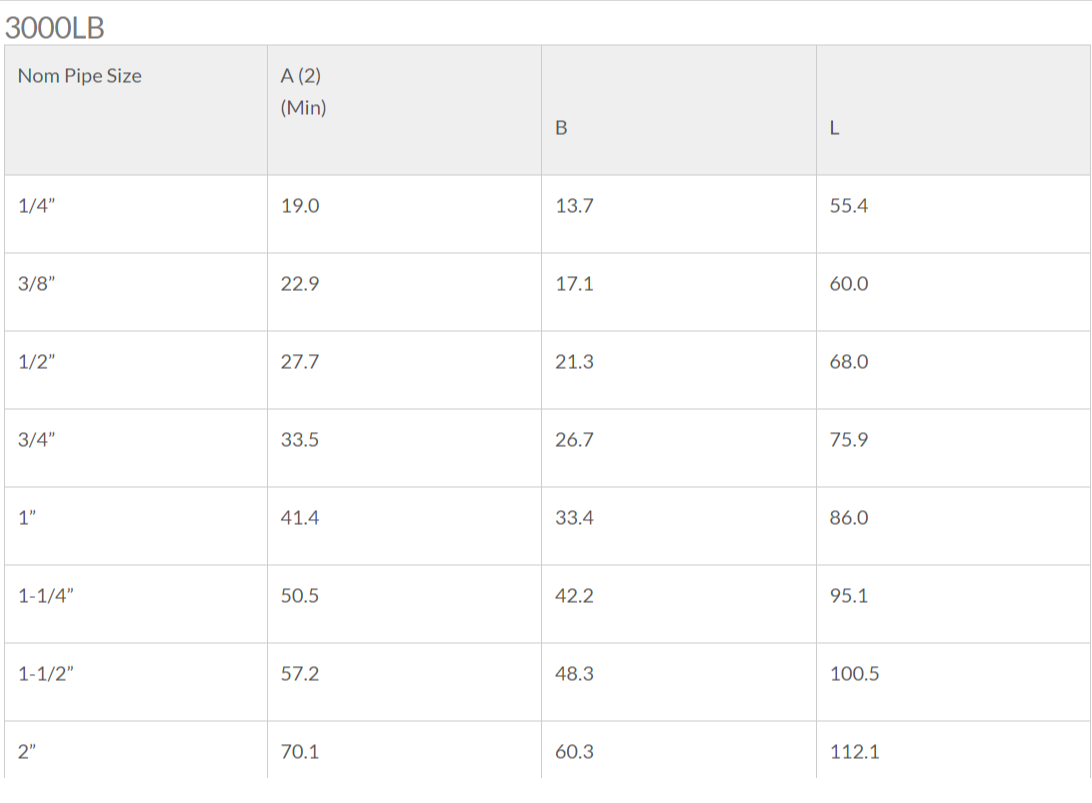

Bull Plugs Threaded

Dimensions in Millimeters.

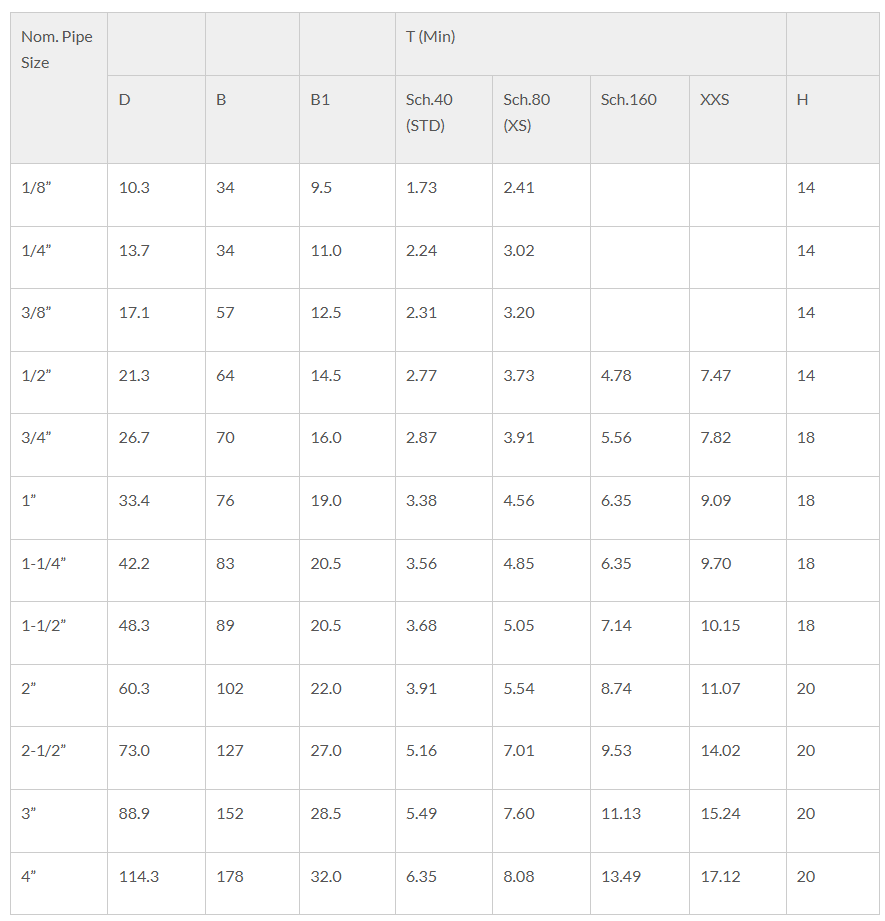

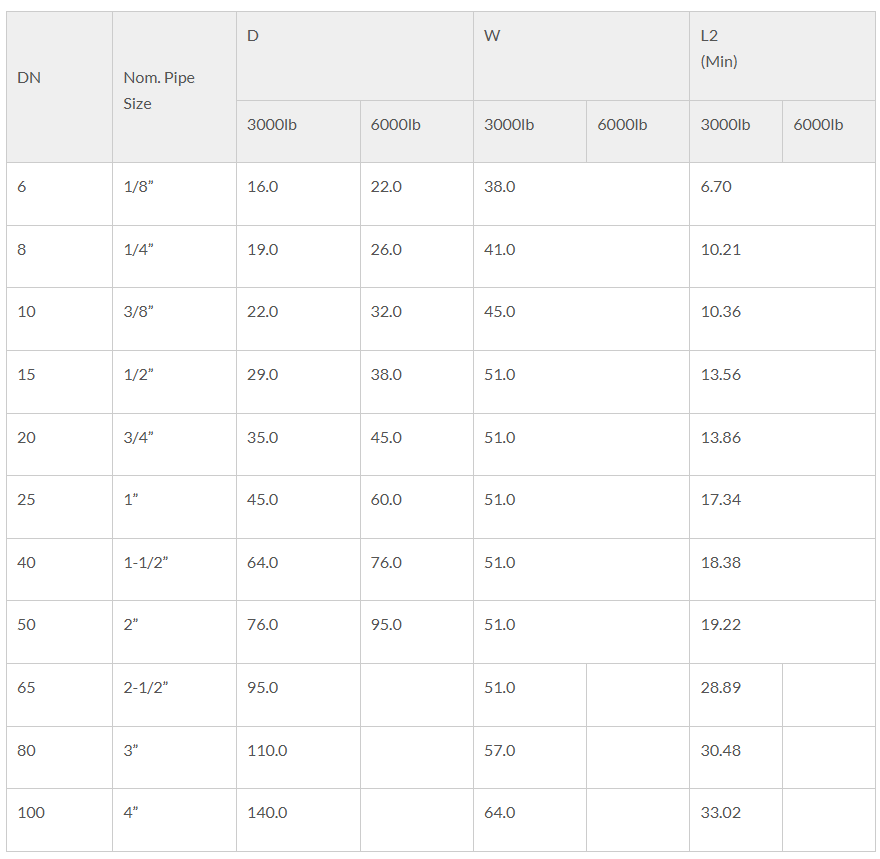

Thread in accordance with ASME B1.20.1 Wall thickness (T Min.) in accordance with ASME B36.10M.

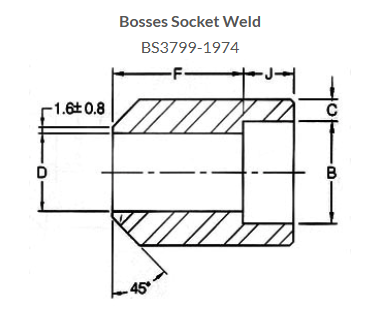

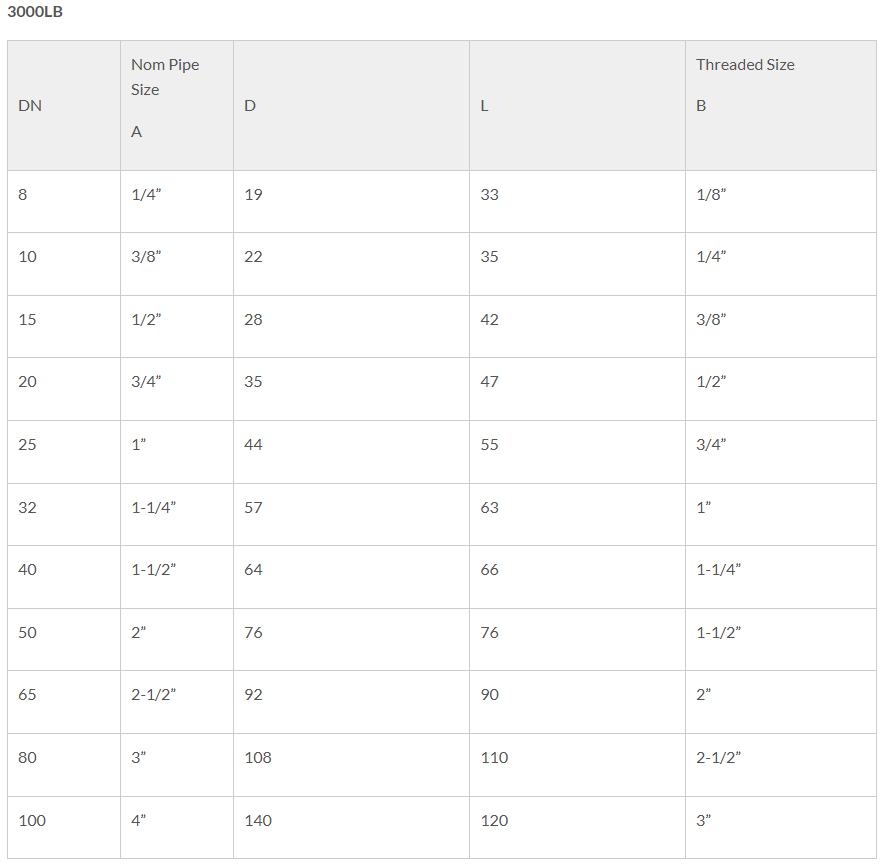

Bosses Threaded

Dimensions in Millimeters.

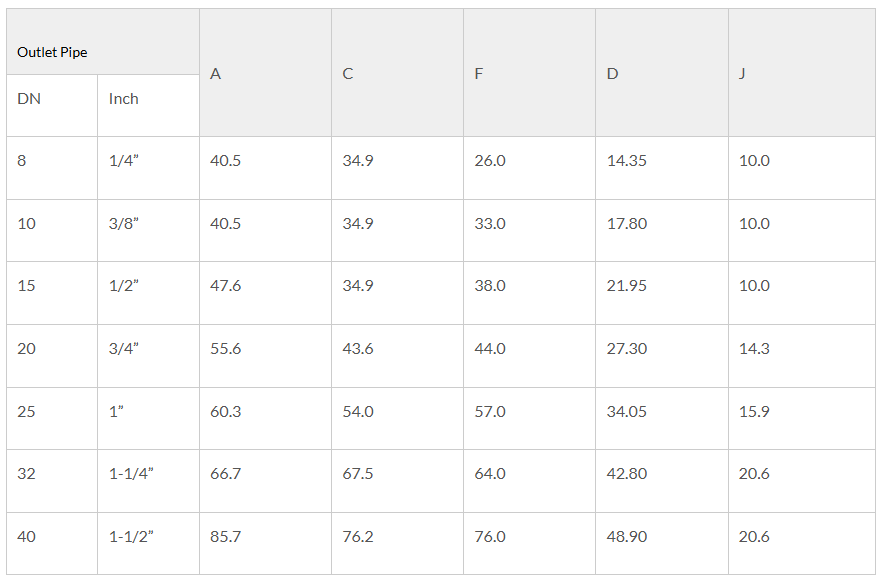

(Continued)

Dimensions in Millimeters.

Dimensions in Millimeters.
Wall Thickness：T1 & T2 in accordance with ASME B36.10M

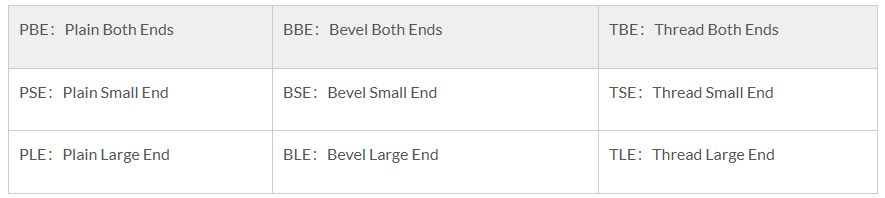

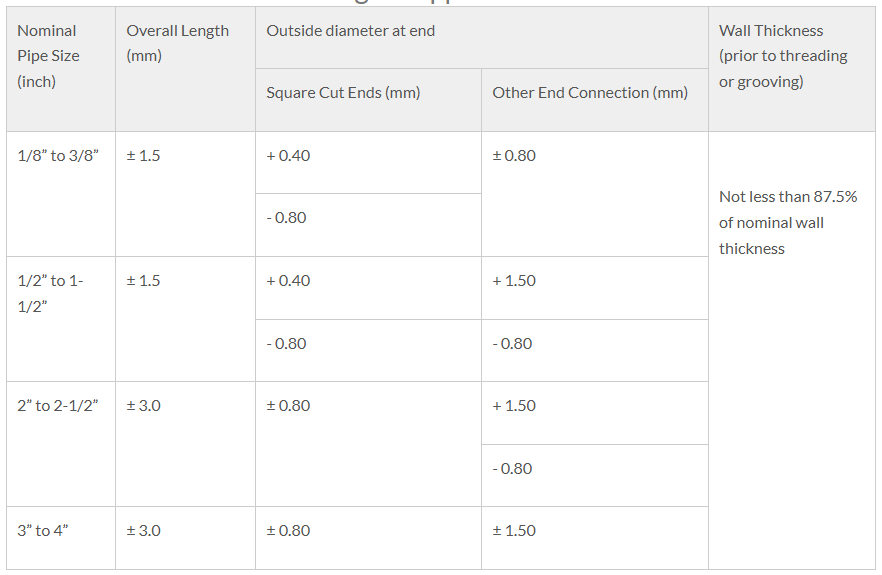

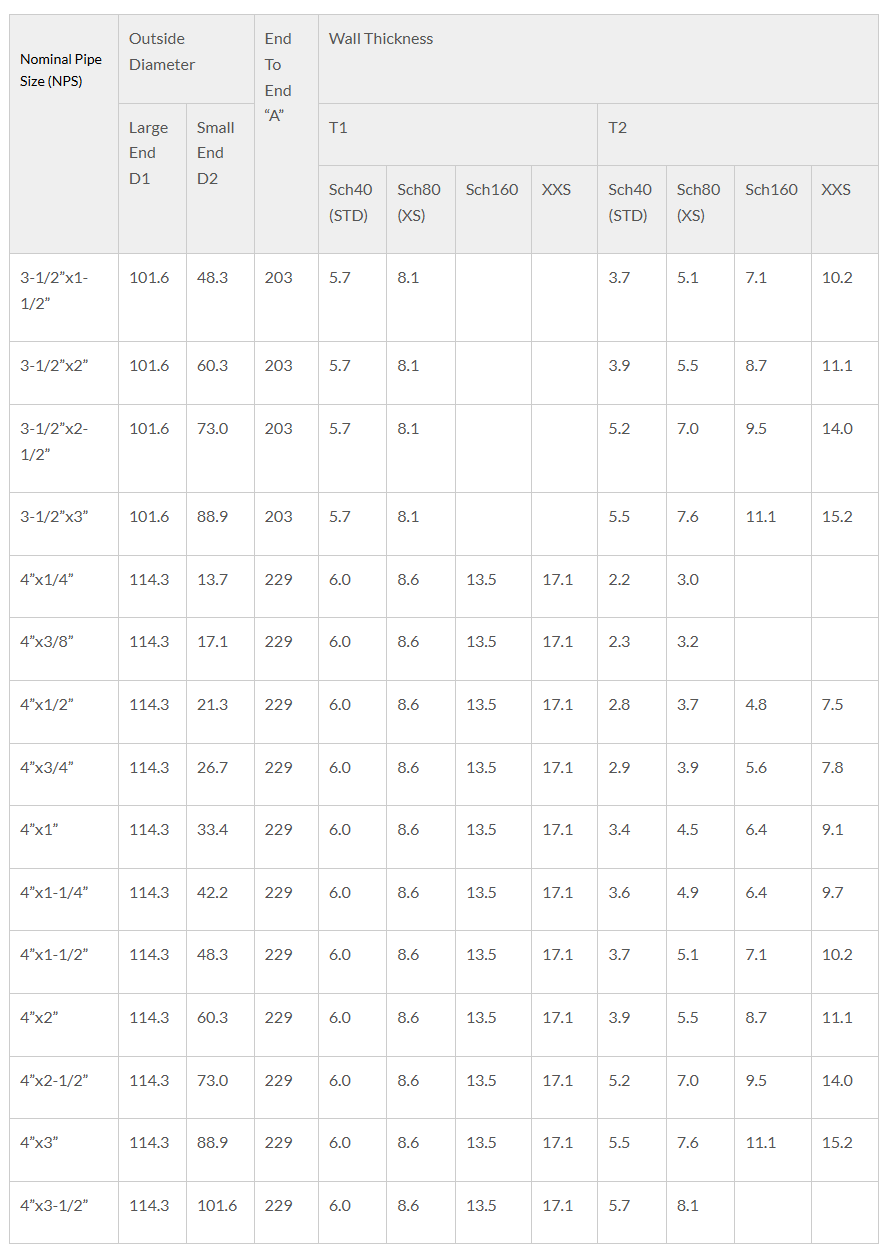

Dimensional Tolerance of Swaged Nipple

Dimensions in Millimeters.
Prior to threading or grooving

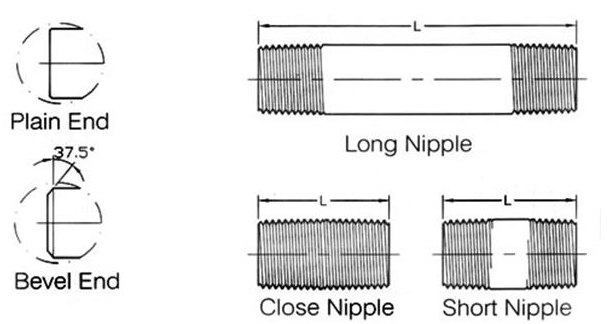

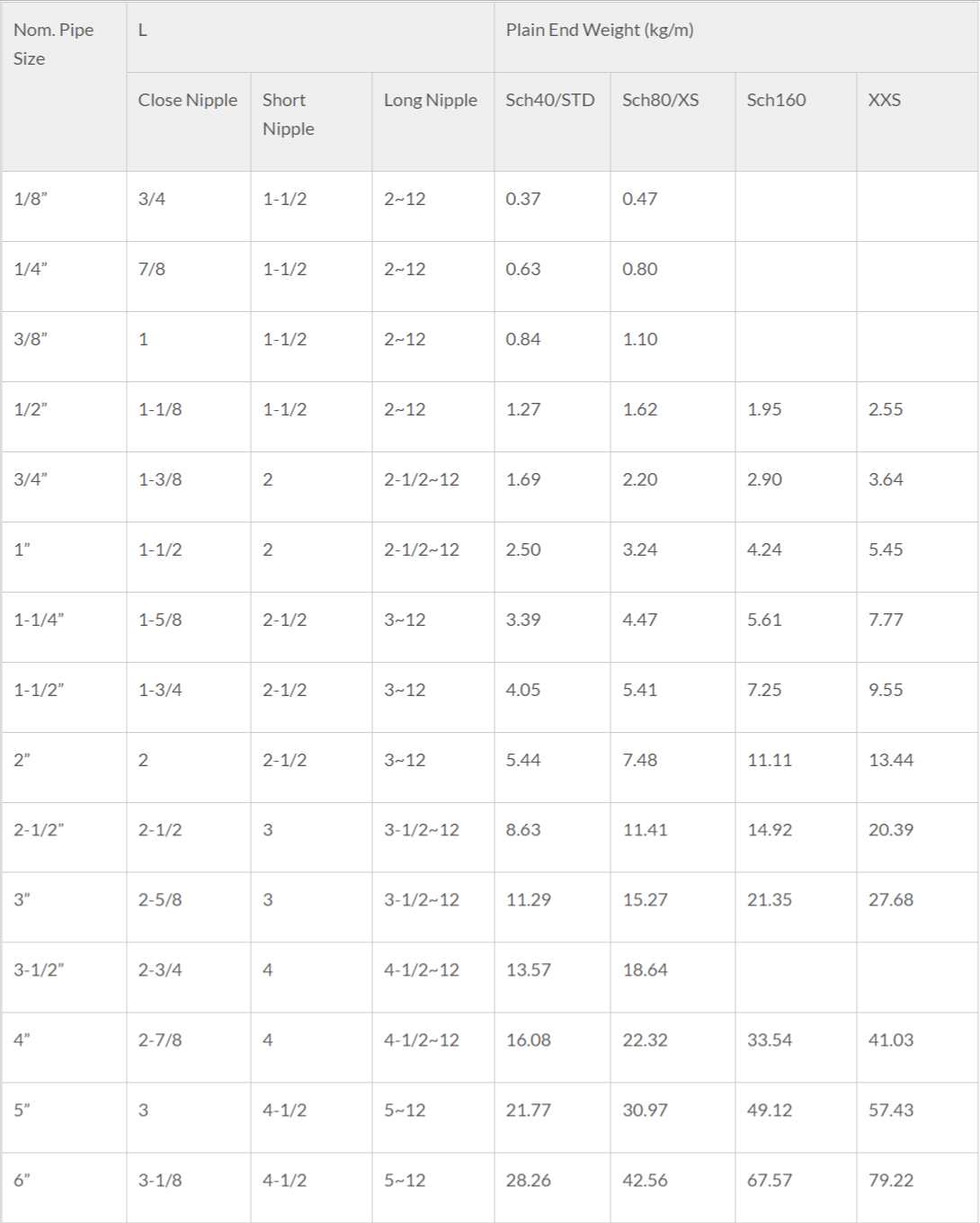

Pipe Nipples Threaded

Dimensions in Millimeters.
Thickness in accordance with ASME B1.20.1
Weld bevel in accordance with ASME B16.25

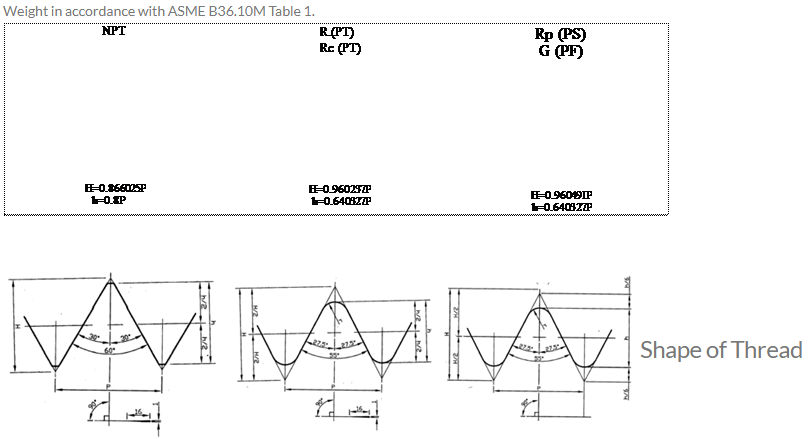

Weight in accordance with ASME B36.10M Table 1.

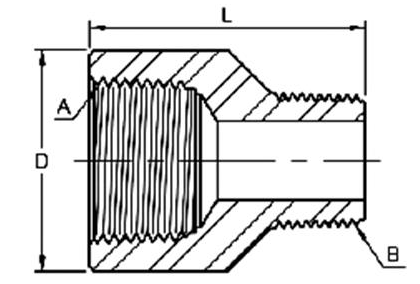

Adapter Threaded

Dimensions in Millimeters.
Thickness in accordance with ANSI / ASME B1.20.1 1983
Dimensions may vary according to the customers’ and manufacturer’s requirement.

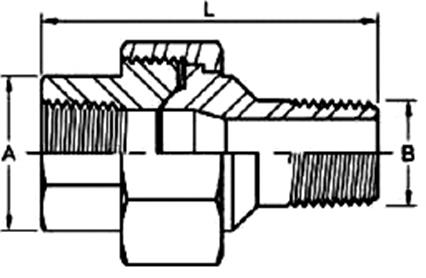

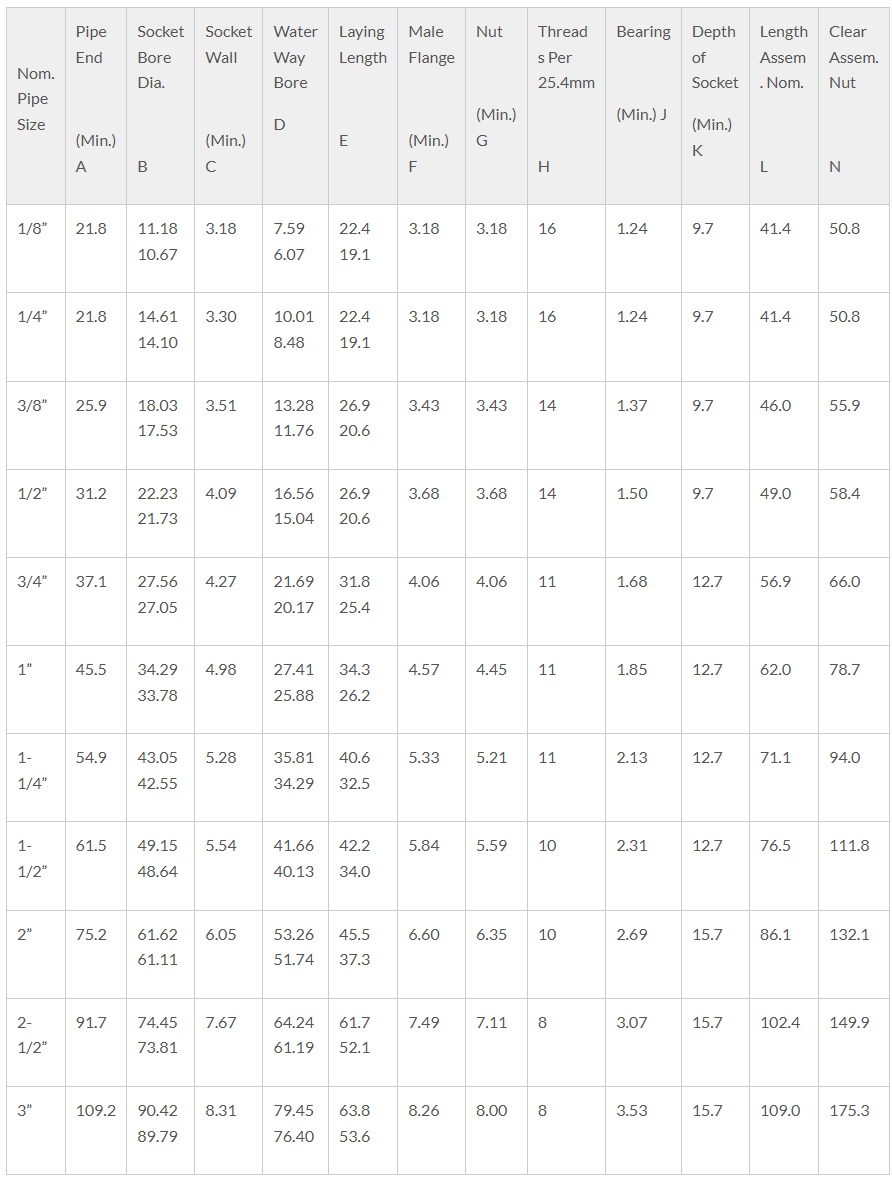

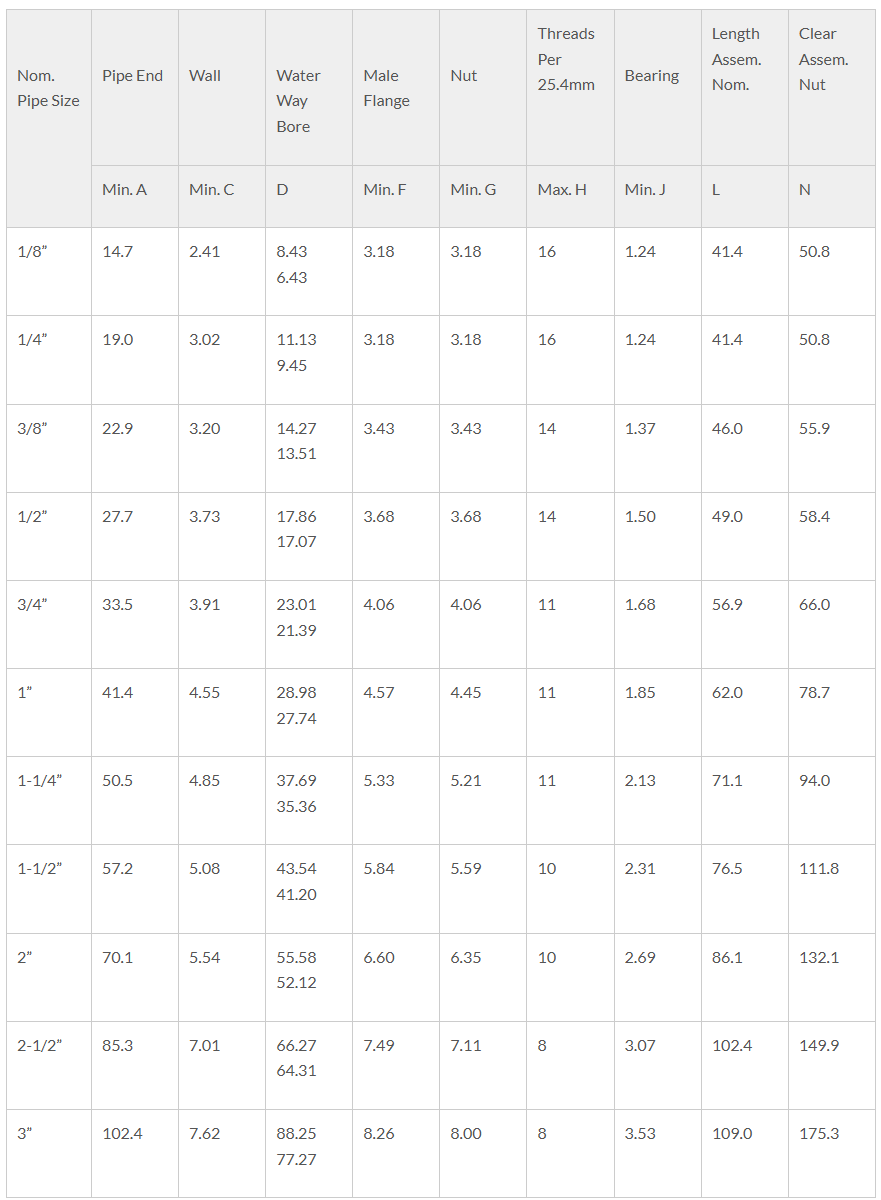

Union (Male x Female)

Dimensions in Millimeters.
Dimensions refer to MSS SP-83 Table 5.
Thickness in accordance with ANSI / ASME B1.20.1 1983
Dimensions may vary according to the customers’ and manufacturer’s requirement

Dimensions in Millimeters.
Thread in accordance with ASME B1.20.1

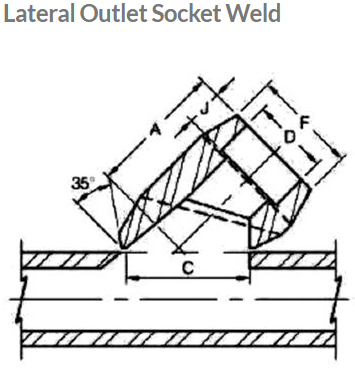

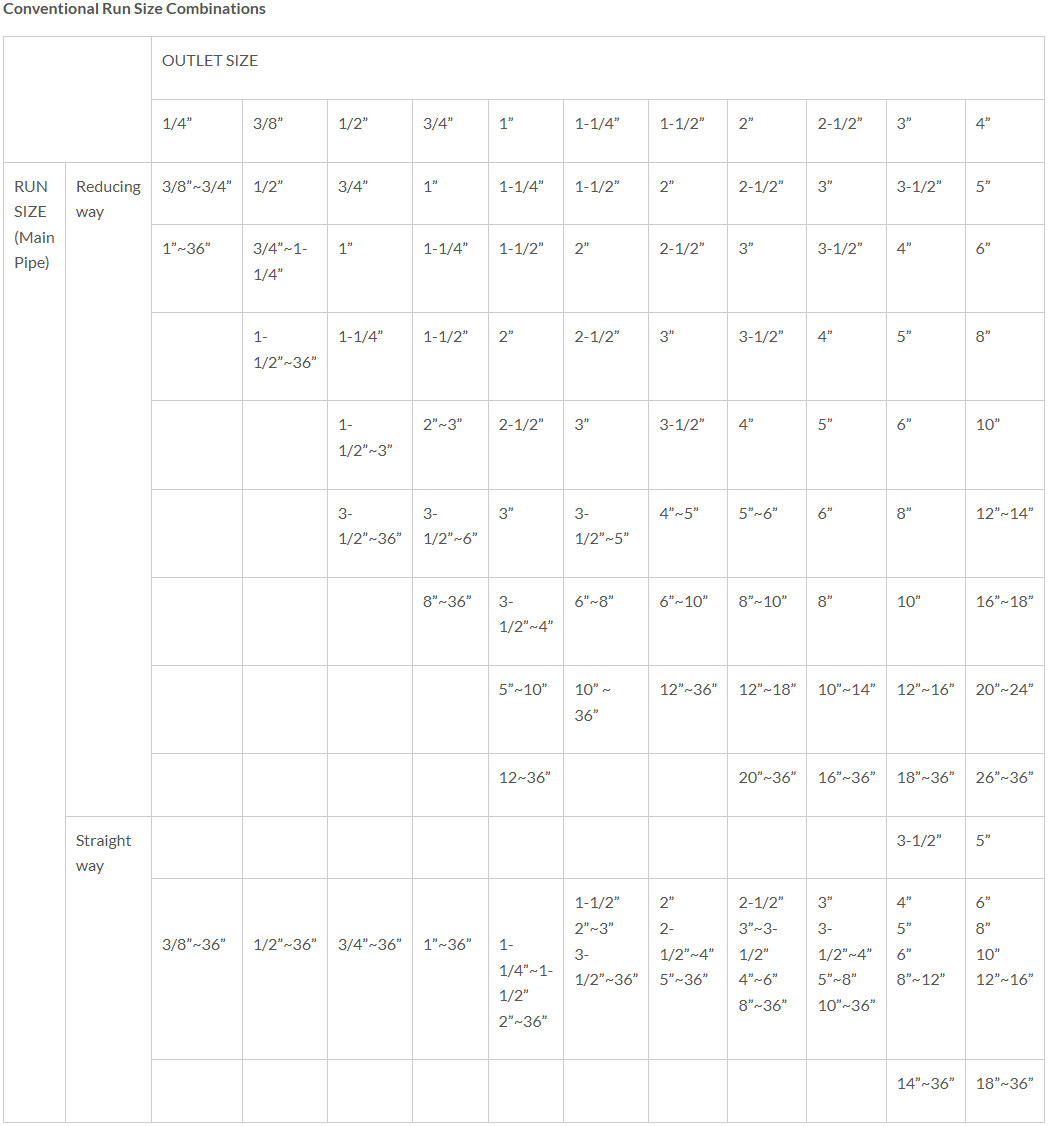

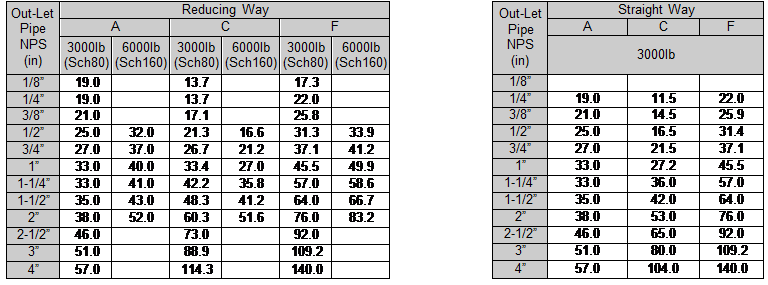

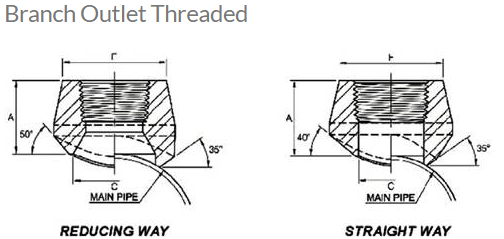

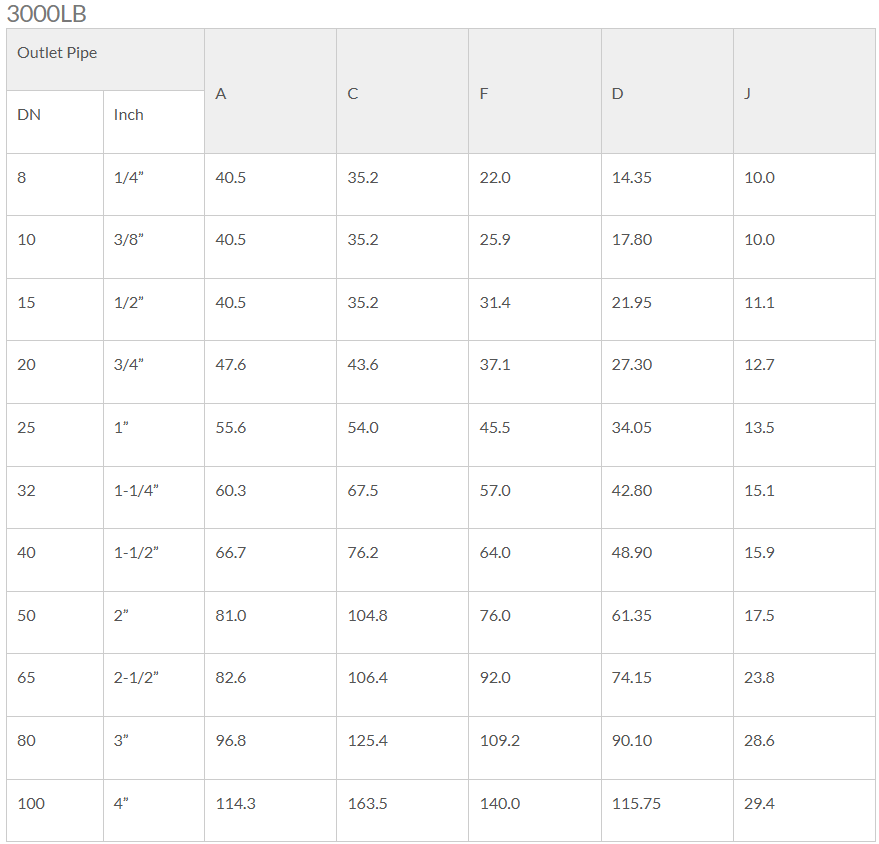

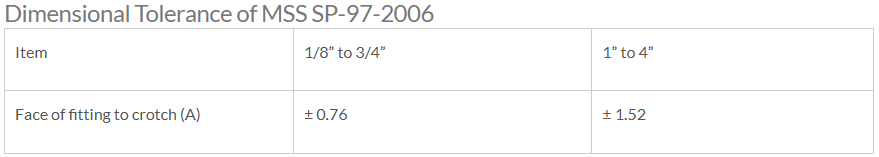

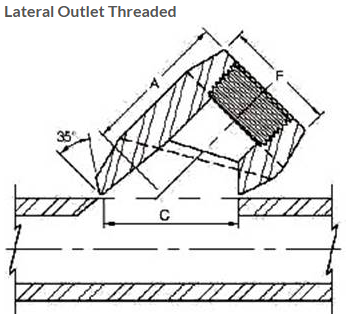

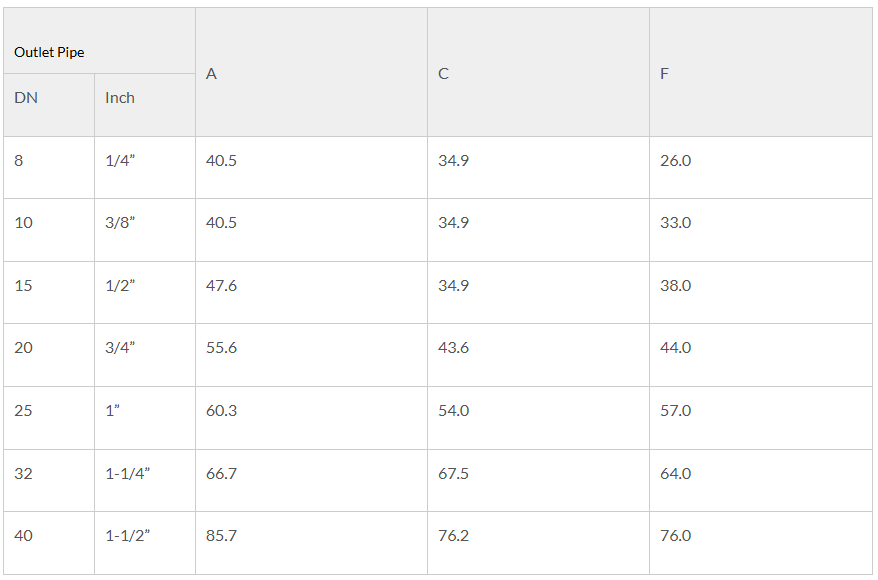

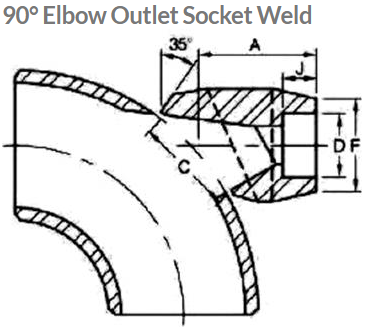

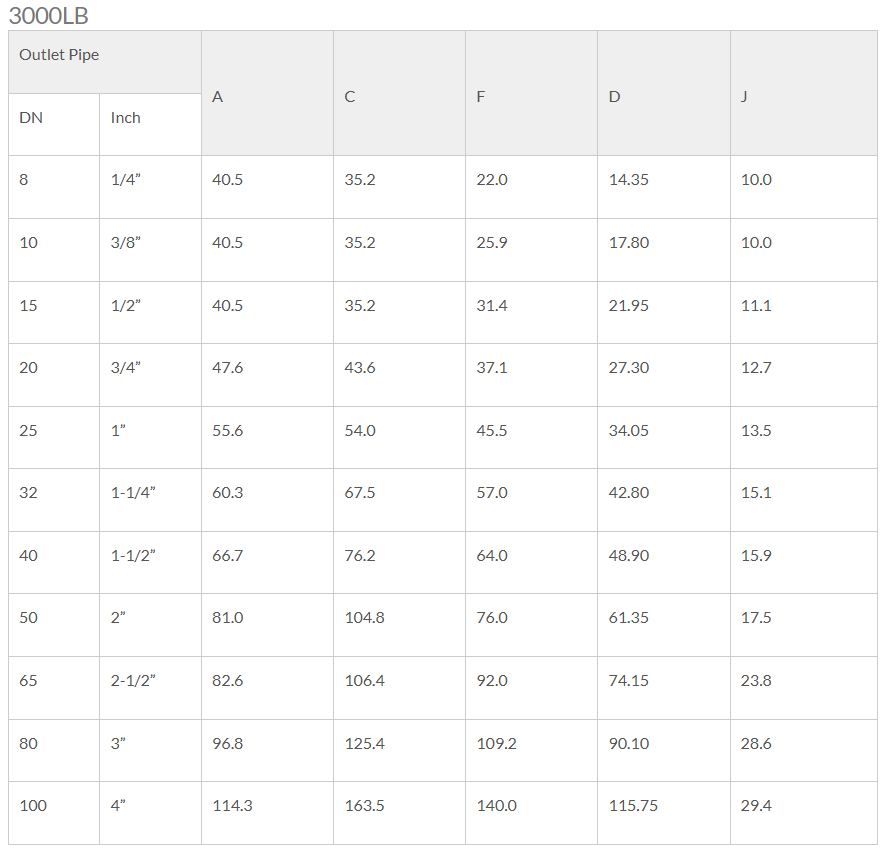

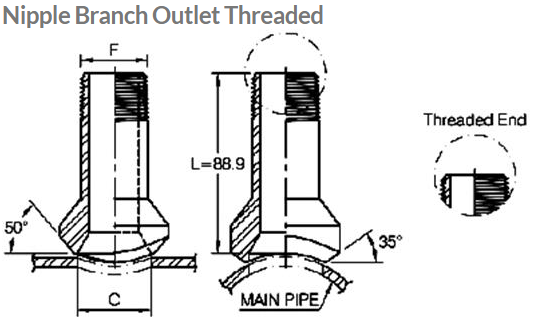

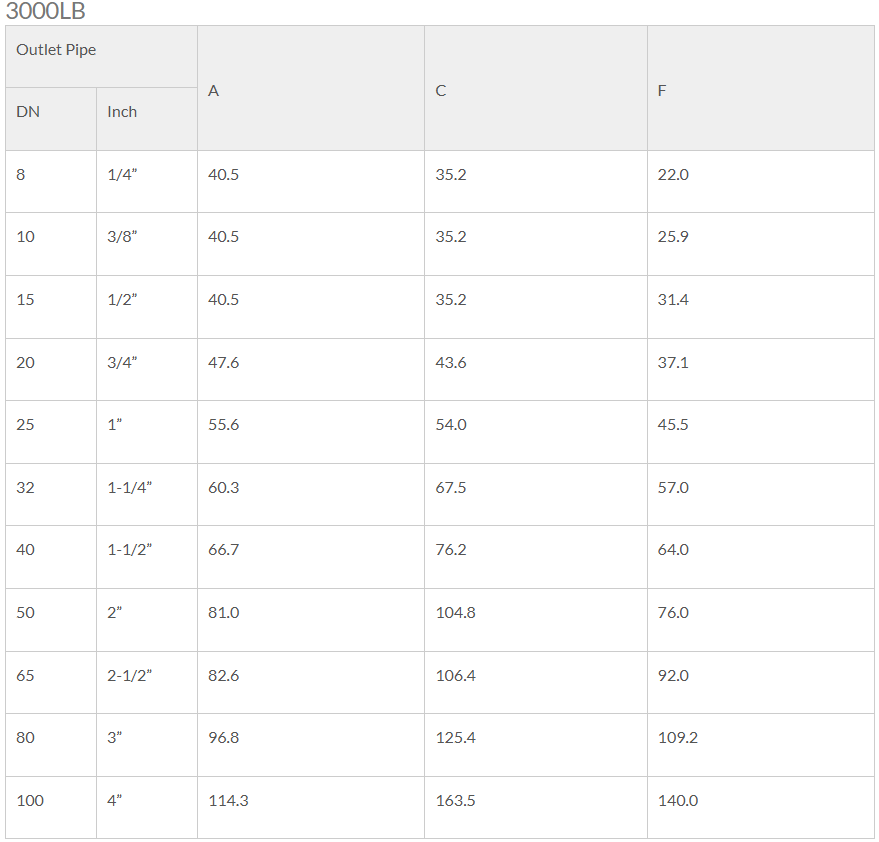

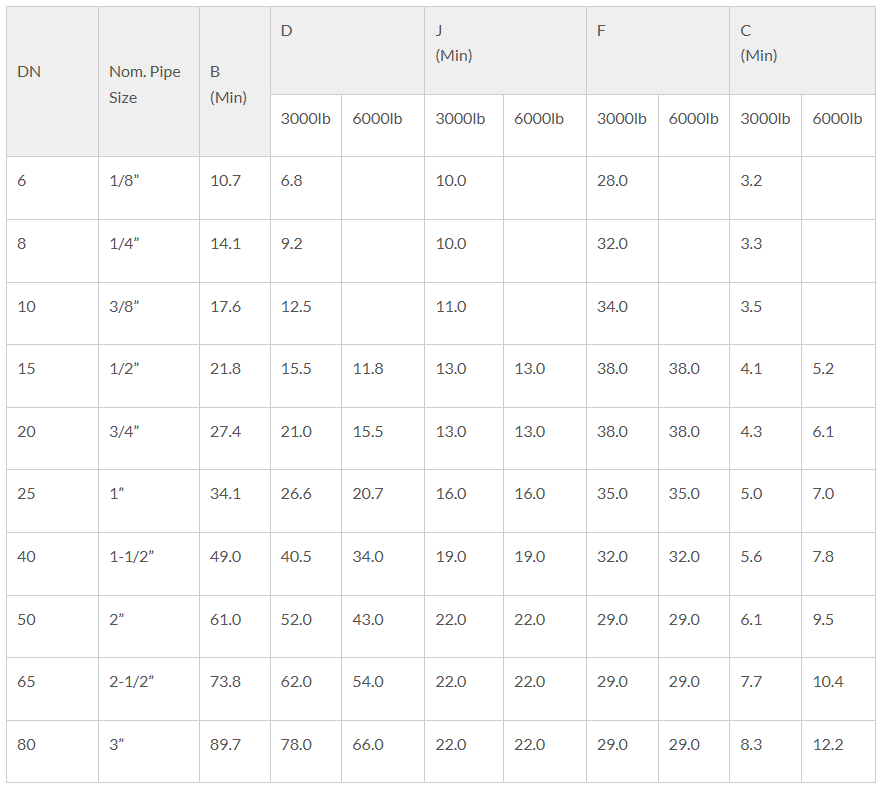

3000LBS outlet size 4 and less fit a number of run pipe sizes and the fitting are marked accordingly.

Each charted outlet size is designed to fit a number of run pipe size.

Dimensions in Millimeters.
Thread in accordance with ASME B1.20.1
Dimensions may vary according to the customer’s and manufacturer’s requirement.

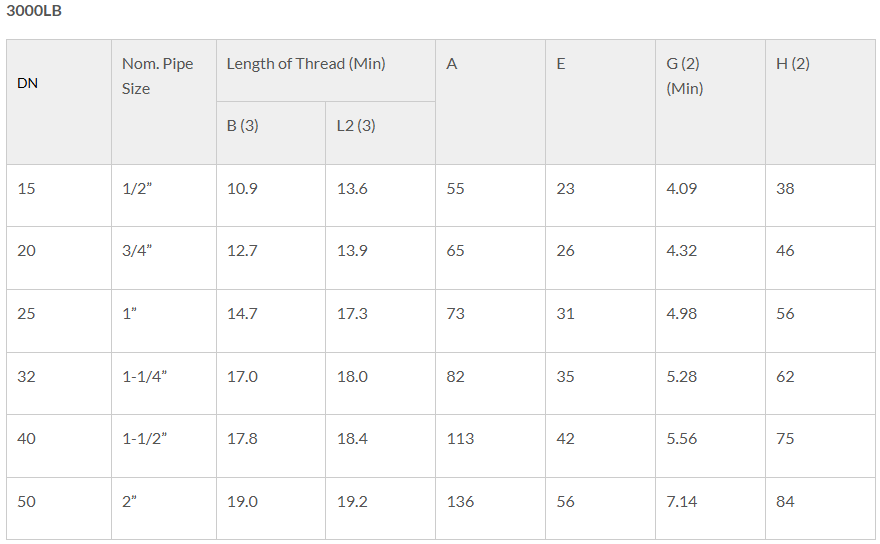

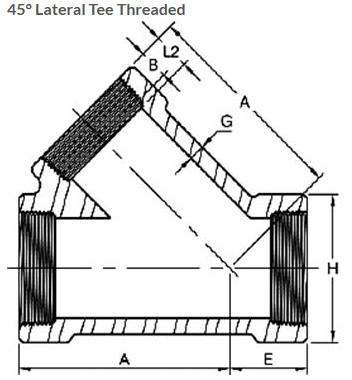

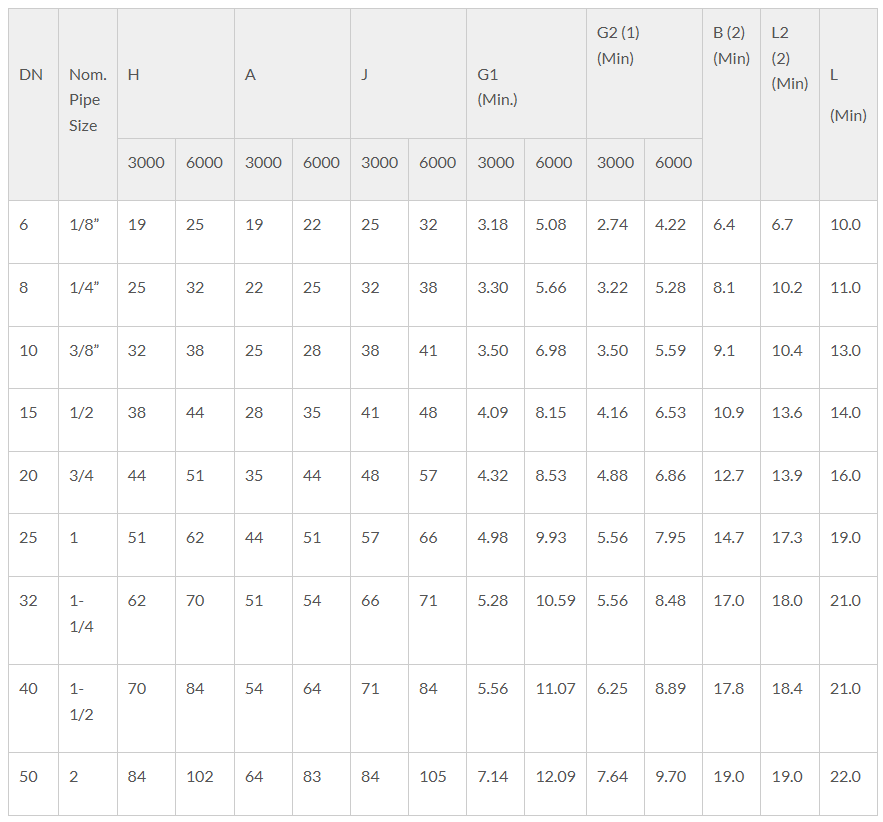

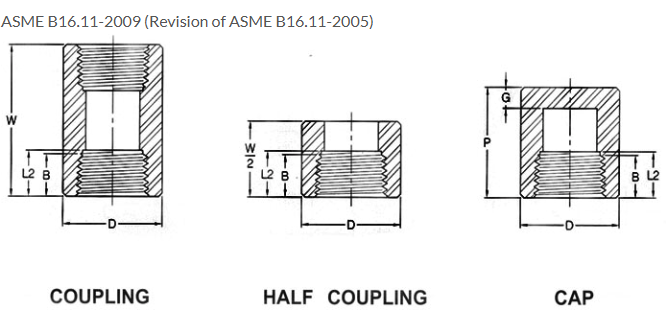

Dimensions in Millimeters.
Dimensions refer to ANSI B16.11
Dimension B is minimum length of perfect thread.
The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than L2 (effective length of external thread) required by American National Standard for pipe threads (ANSI/ASME B1.20.1)

Dimensions of BSP and PT are available if required. Dimensions may vary according to the customer’s and manufacturer’s requirement.

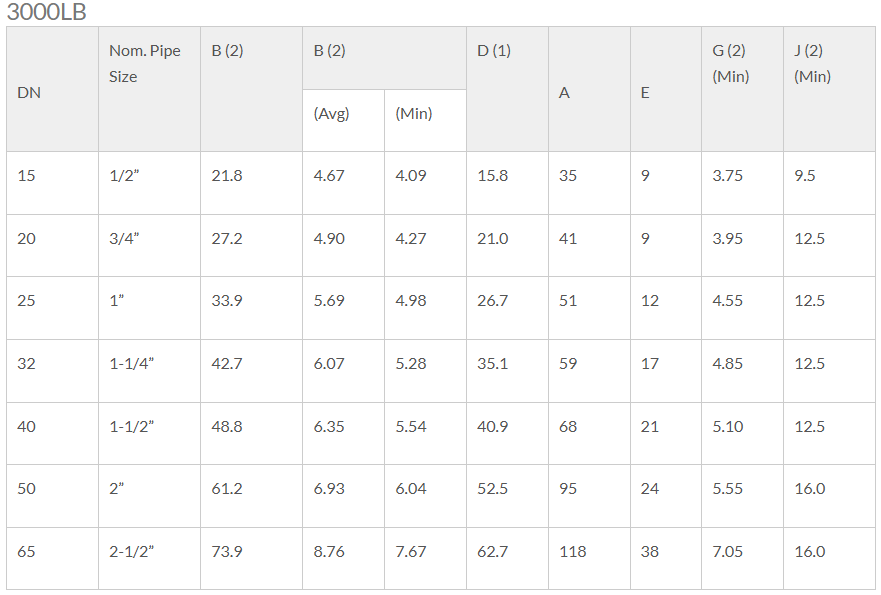

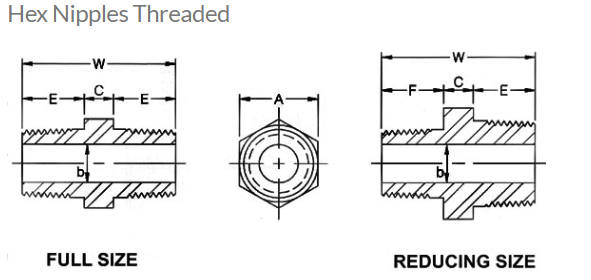

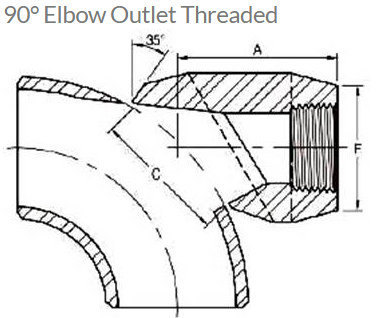

Dimensions in Millimeters.
Thread in accordance with ASME B1.20.1
Dimensions may vary according to the customer’s and manufacturer’s requirement.

Dimensions in Millimeters.
Thread in accordance with ASME B1.20.1
Dimensions may vary according to the customer’s and manufacturer’s requirement

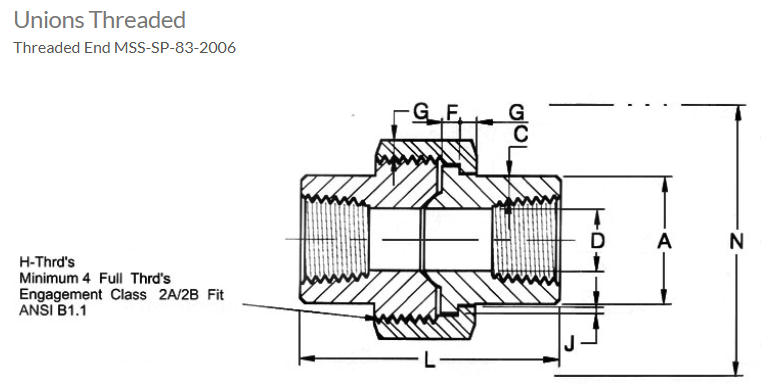

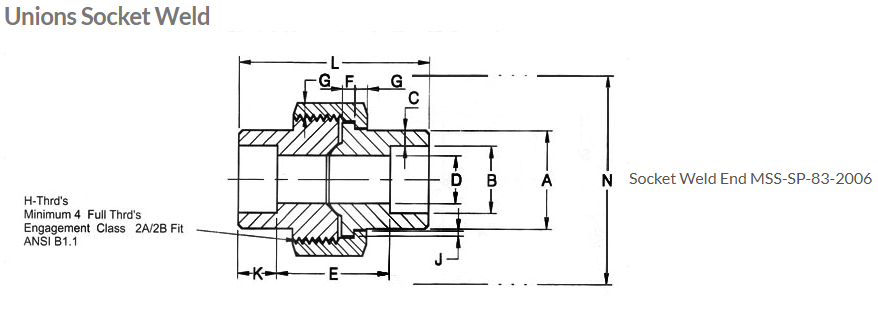

Weld End MSS-SP-83-2006

Dimensions in Millimeters.
Upper and lower values for each size are the respective maximum and minimum dimensions

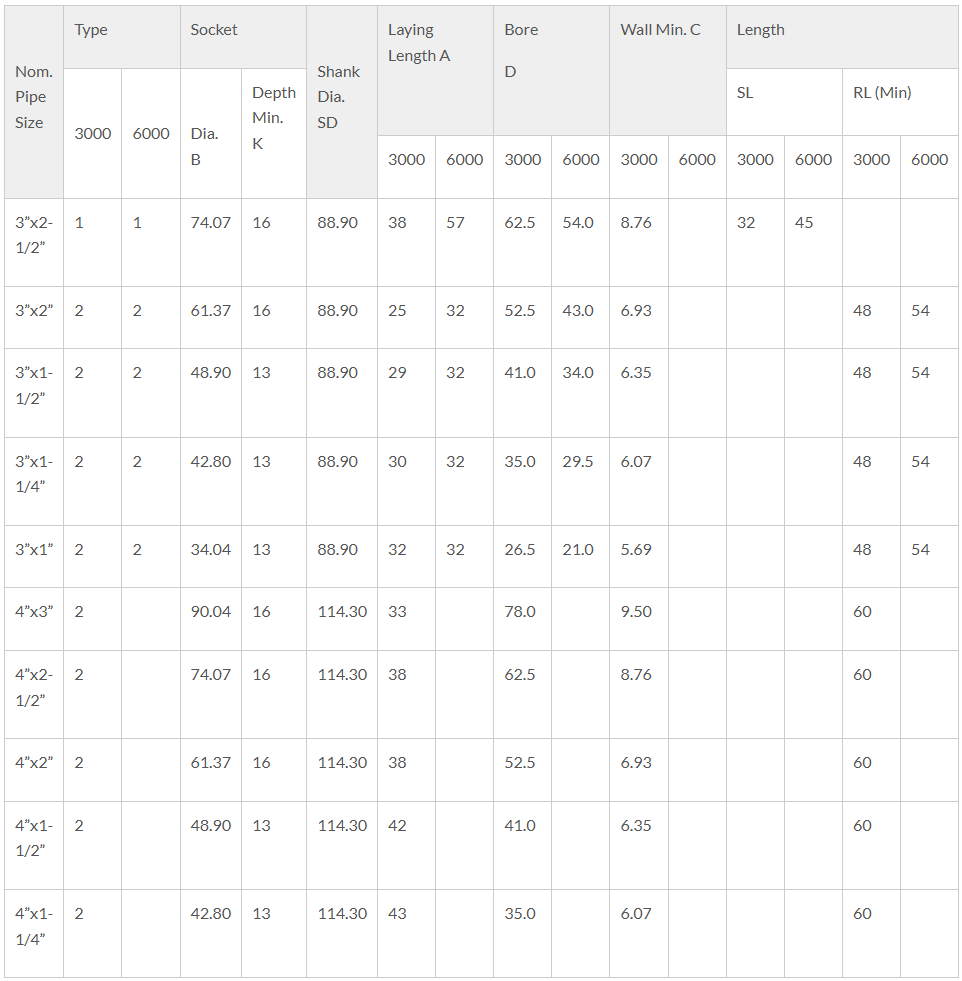

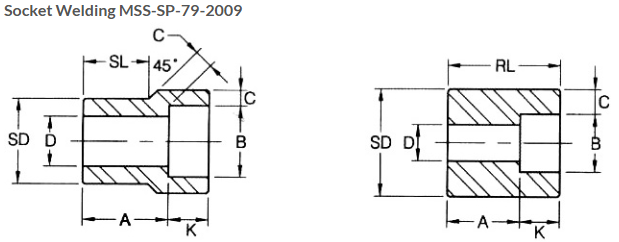

Dimensions in Millimeters.
At the option of the manufacturer type 2 reducer may be furnished in type 1 configuration.

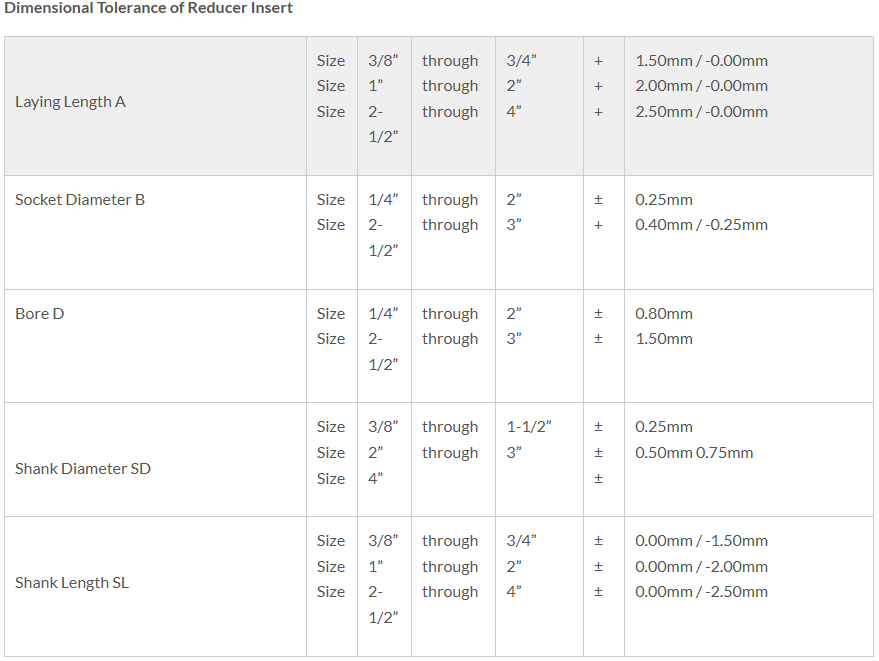

Dimensional Tolerance of Reducer Insert

Dimensions in Millimeters.

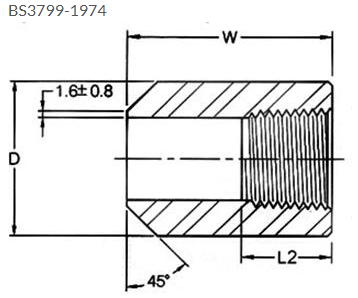

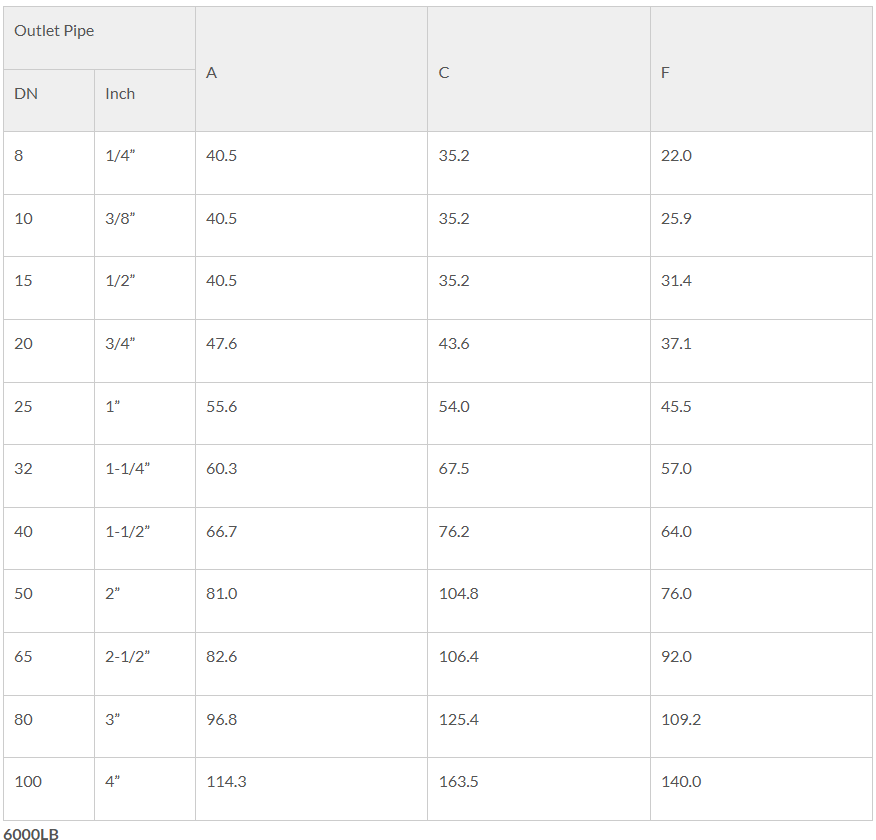

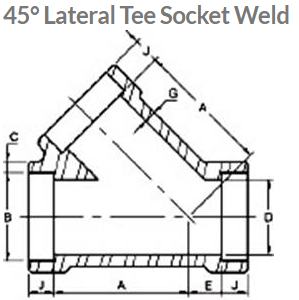

Dimensions in Millimeters.
Dimensions refer to ANSI B16.11
Dimensions may vary according to the customer’s and manufacturer’s requirement

Dimensions in Millimeters.
Dimensions refer to ANSI B16.11
Dimensions may vary according to the customer’s and manufacturer’s requirement.

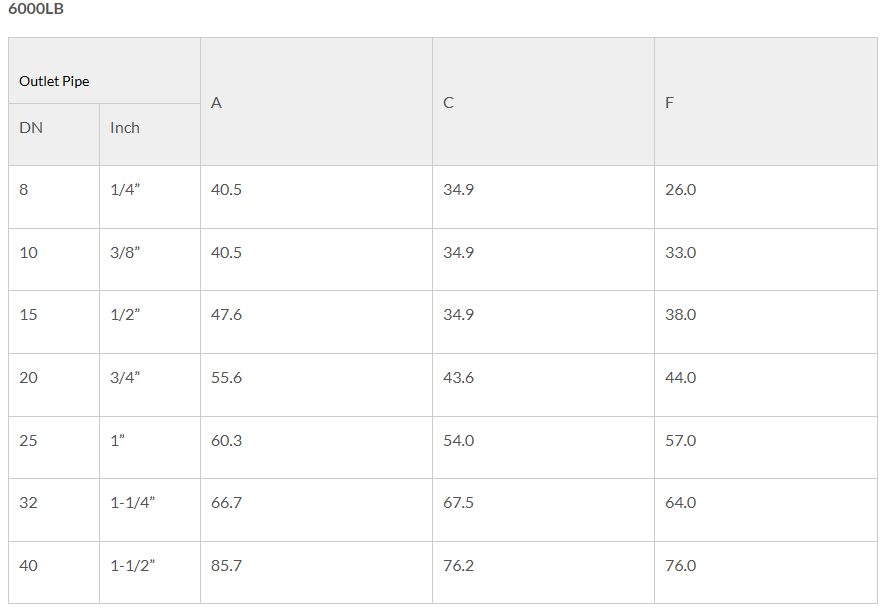

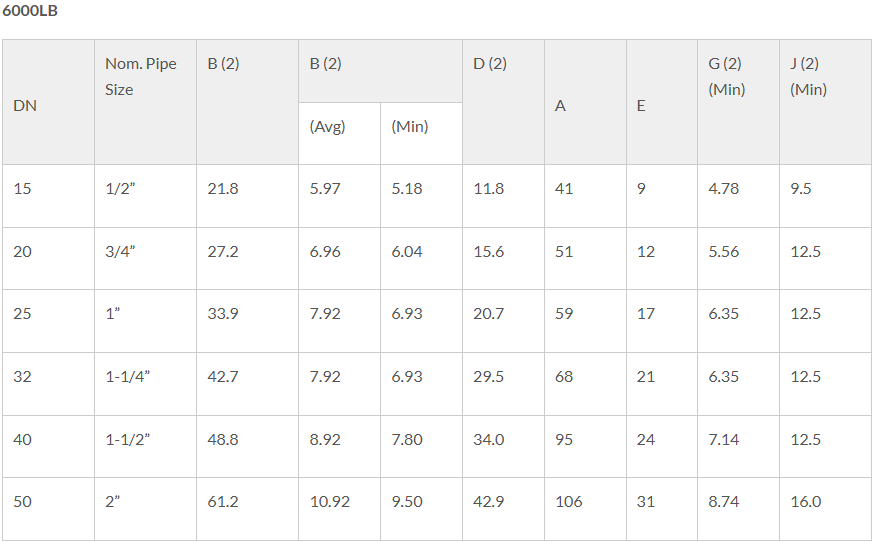

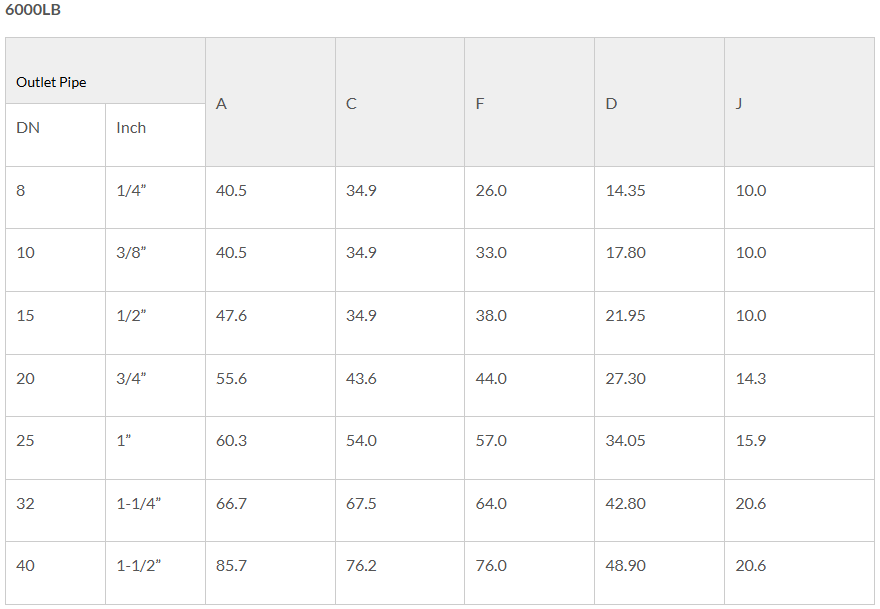

6000lb

Dimensions in Millimeters.
Dimensions refer to ANSI B16.11
Dimensions may vary according to the customer’s and manufacturer’s requirement
